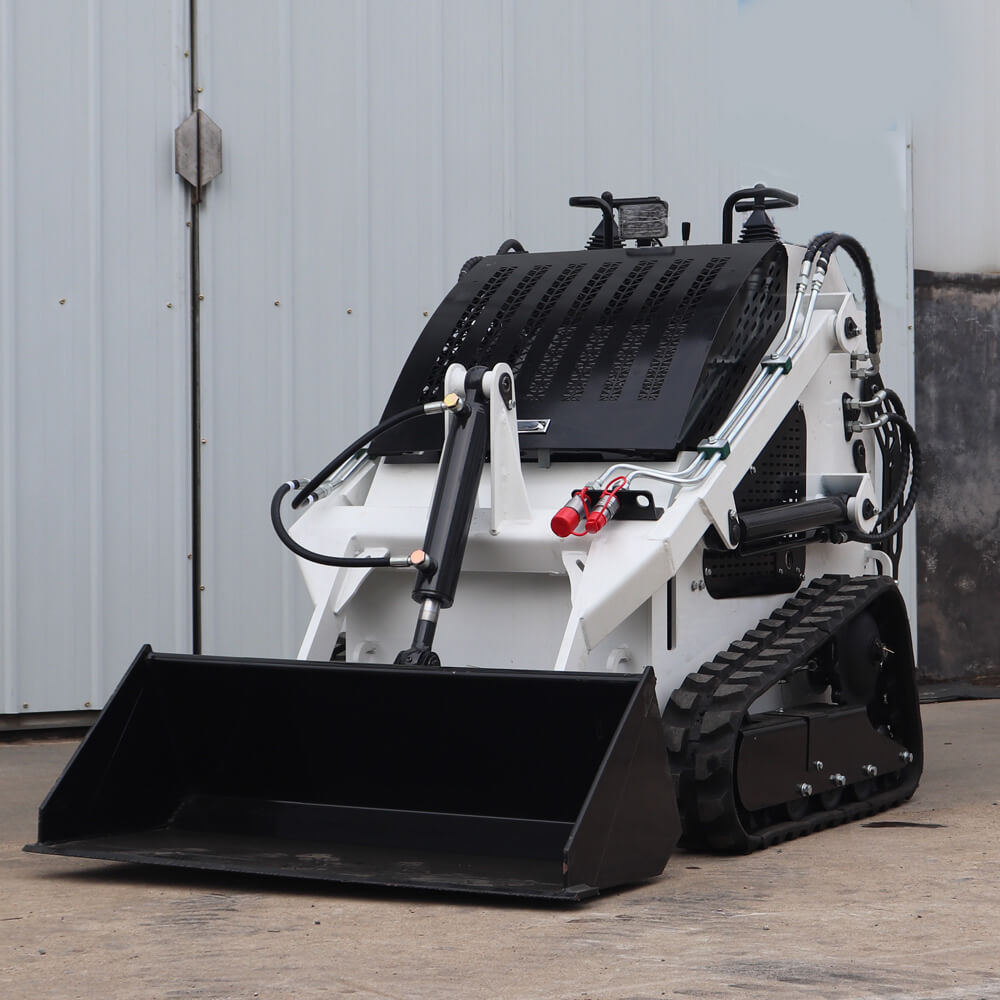

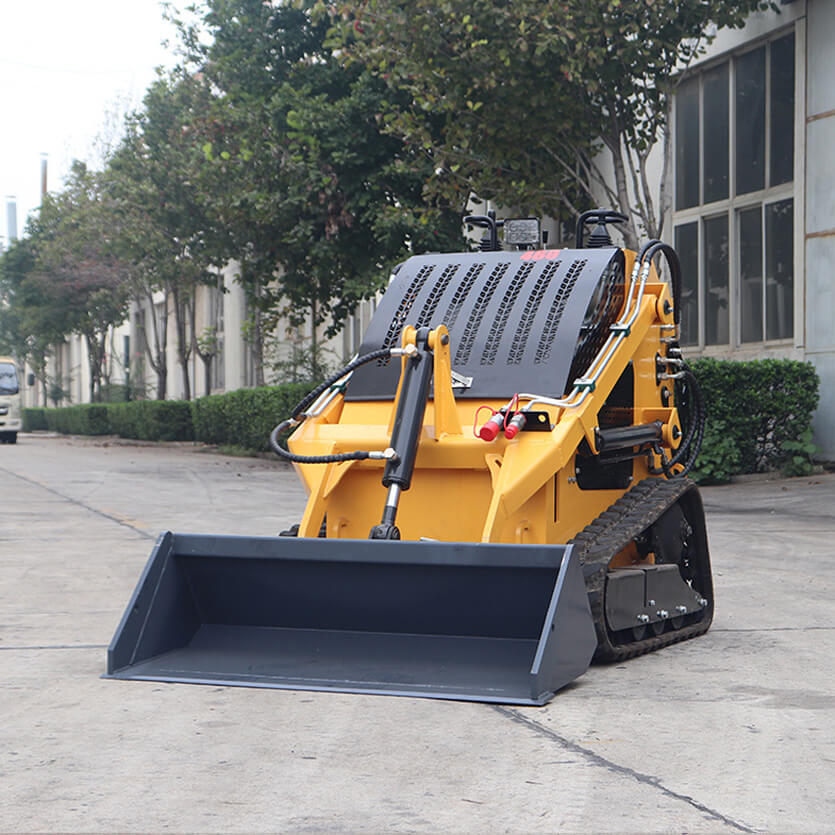

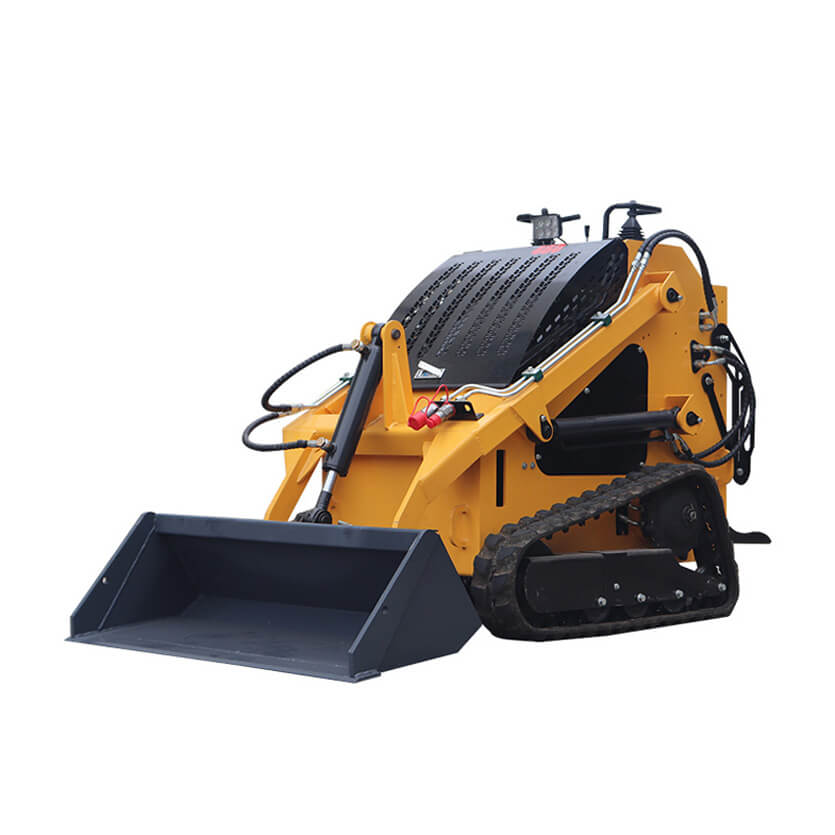

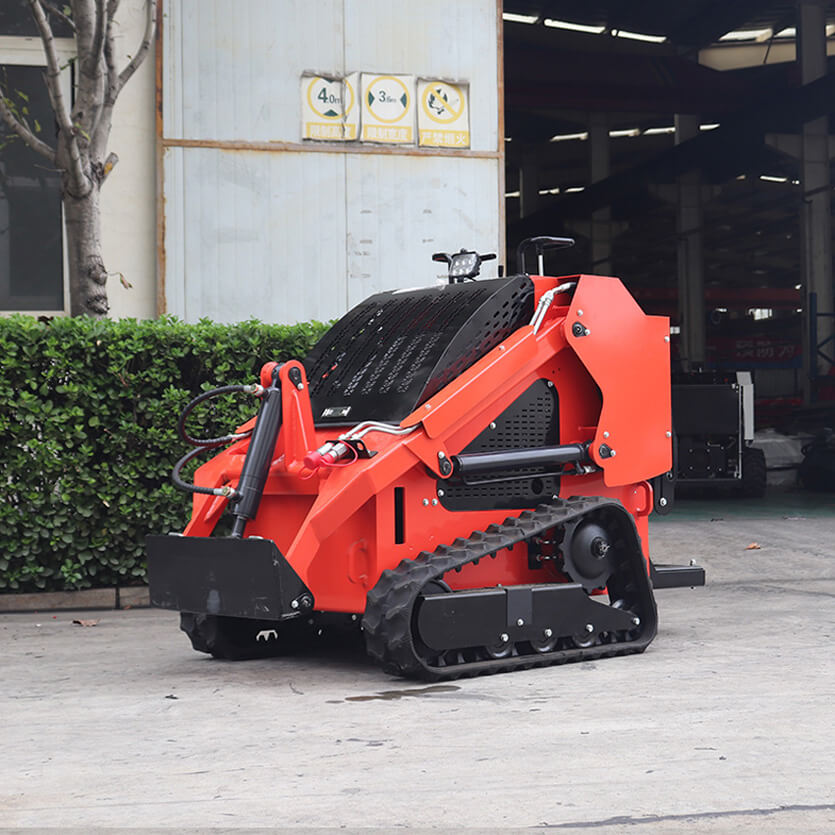

MY-460 Skid Steer Loader
| Model | MY-460 |
| Engine | Koop/Briggs & Stratton |
| Rated power | 14-17kw |
| Calibration speed | 3600rpm |
| Cylinder | Double |
| Intake method | Natural |
| Displacement | 639cc |
| Emission Standard | Euro 5/EPA |
| Rated load | 300kg |
| Max. load | 400kg |
| Max. rising force | 450KN |
| Bucket volume | 0.12m³ |
| Walking speed | 0-6km/h |
| Working system pressure | 17-21bar |
| Fuel tank volume | 10L |
| Operating weight | 1200kg |
| Tire | 18*72 |
| Max. operating height | 2450mm |
| To bucket pin height | 1870mm |
| Overall height | 1350mm |
| Bucket horizontal maximum height | 1810mm |
| Total length without accessories | 1680mm |
| Overall length with standard bucket | 2206mm |
| Max. height unloading angle | 34° |
| Unloading height | 1510mm |
| Unloading distance | 450mm |
| The flip angle of the bucket on the ground | 27° |
| Bucket flip angle at highest | 114° |
| wheelbase | 850mm |
| Ground clearance | 150mm |
| Tail length | 280mm |
| Wheel base (standard tires) | 720mm |
| Total width (standard tires) | 1100mm |
| Bucket width | 1000mm |
