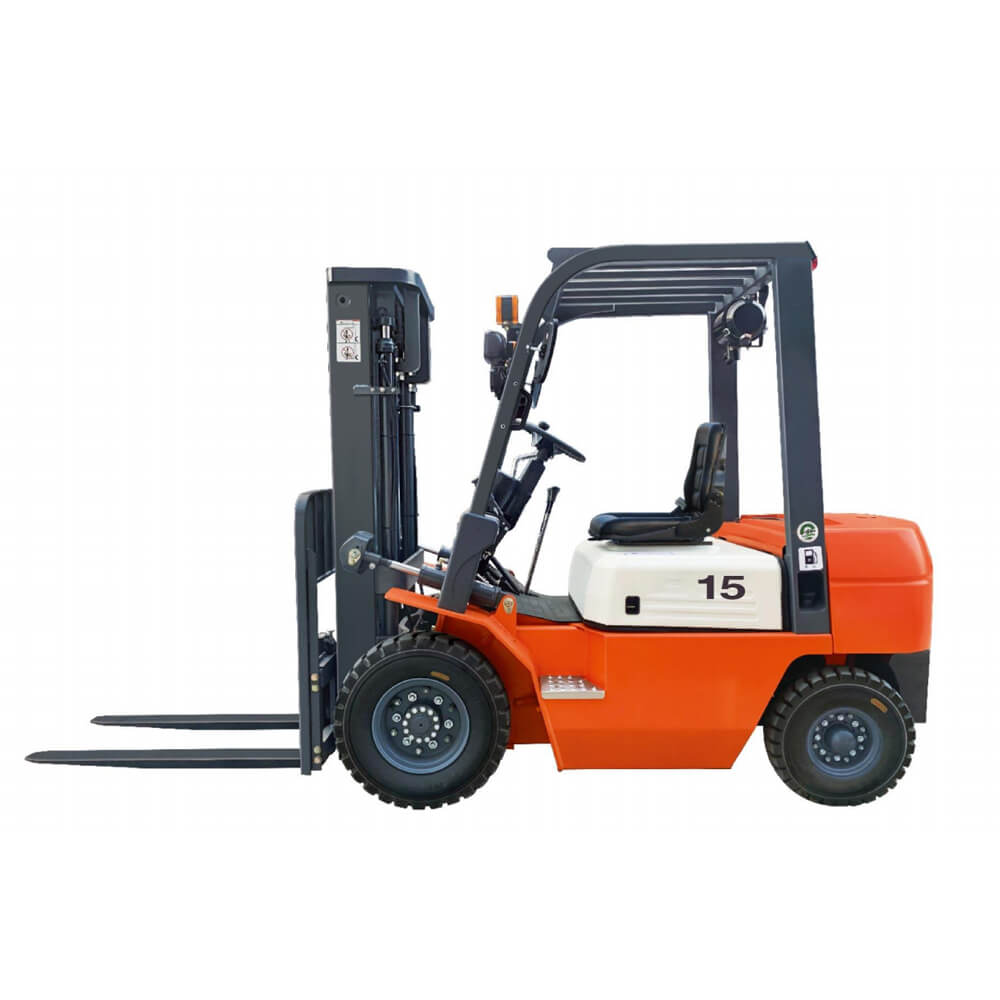

MY-15 Diesel Forklift

Model	Unit	MY-15	MY-20	MY-25
Rated lifting load	kg	1500	2000	2500
Load center distance	mm	500
Free lifting height	mm	100	150
overall length (With fork/Without fork )	mm	3180/2260	3422/2502	3646/2576
Width	mm	1090	1170
Overhead guard height	mm	2050	2070
Wheelbase	mm	1400	1600
Minimum ground clearance	mm	110
Mast tilt angle(front/rear)	%	6°/12°
Tire no.(before)		6.5-10-10PR	7.00x12-12PR
Tire no.(after)		5.00-8-10PR	6.00x9-10PR
Minimum turning radius(outer side)	mm	1950	2170	2240
Minimum right angle aisle width	mm	3630	3900	3970
Fork size	mm	920x100x35	1070X100X45
maximum working speed(Full-load/No-load )	km/h	14/15	17/19
maximum lifting speed(Full-load/No-load )	mm/s	500/480	530/550
maximum gradeability(Full-load/No-load)	%	20/21
Forklift weight	kg	2900	3320	3680
Engine model		Quanchai/B02-082	Quanchai4C2-50V32/Quanchai4C2-50C41
