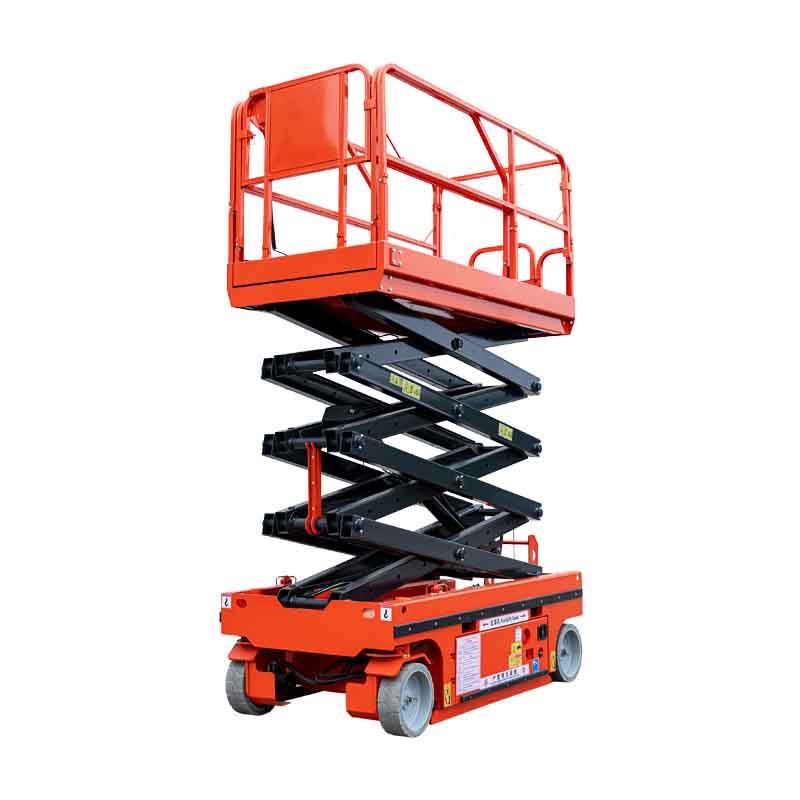

Scissor Lift
1.Strong stability at height;
2.Non-marking tires;
3.True zero inside turning radius, working well in tight areas;
4.Swing doors on both sides, easy for maintenance;
5.Extended duty cycle due to highly efficient design;
6.Safety protections: tilting sensor / overload sensor / pothole protection / automatic braking / manual lowering / automatic stop when overheated / safety valve on hydraulic cylinder
Product Details
| Model(Self-propelled hydraulic drive) | MY6 | MY8 | MY10 | MY12 | MY14 |
| Maximum working height | 8m | 10m | 12m | 13.85m | 15.8m |
| Maximum platform height | 6m | 8m | 10m | 12m | 14m |
| Safe working load | 450 kg | 450 kg | 320 kg | 320 kg | 230kg |
| Extended platform safe working load | 110kg | 110kg | 110kg | 110kg | 110kg |
| Working platform dimensions (length × width × height) | 2.25×1.13×1.2m | 2.25×1.13×1.2m | 2.25×1.13×1.2m | 2.25×1.13×1.2m | 2.636×1.13×1.2m |
| Overall dimensions of the machine (length × width × height, guardrails are not folded) | 2.47×1.19×2.18m | 2.47×1.19×2.29m | 2.47×1.19×2.43m | 2.47×1.19×2.56m | 2.85×1.38×2.58m |
| Overall dimensions of the machine (length × width × height, guardrail folded) | 2.47×1.19×1.71m | 2.47×1.19×1.84m | 2.47×1.19×1.895m | 2.47×1.19×2.12m | 2.85×1.38×1.95m |
| Countertop extension size | 0.9m | 0.9m | 0.9m | 0.9m | 0.9m |
| Minimum ground clearance | 0.1/0.15m | 0.1/0.15m | 0.1/0.15m | 0.1/0.15m | 0.1/0.02m |
| Wheelbase | 1.90m | 1.90m | 1.90m | 1.90m | 2.24m |
| Turning radius (inner wheel/outer wheel) | 0/2.35m | 0/2.35m | 0/2.35m | 0/2.35m | 0/2.5m |
| Lift/Drive motor | 24V/3.3kw | 24V/3.3kw | 24V/4.5kw | 24V/4.5kw | 24V/4.5kw |
| Lifting speed | 3-5m/min | 3-5m/min | 3-5m/min | 3-5m/min | 3-5m/min |
| Machine traveling speed (retracted state) | 3.5km/h | 3.5km/h | 3.5km/h | 3.5km/h | 3.5km/h |
| Machine traveling speed (lifting state) | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h |
| Battery | 4×6V/200ah | 4×6V/200ah | 4×6V/200ah | 4×6V/200ah | 4×6V/200ah |
| Charger | 24V/30A | 24V/30A | 24V/30A | 24V/30A | 24V/30A |
| Maximum climbing ability | 25% | 25% | 25% | 25% | 25% |
| Maximum allowable working angle | 1.5° /3° | 1.5° /3° | 1.5° /3° | 1.5° /3° | 1.5° /3° |
| Tire | Φ381×127mm | Φ381×127mm | Φ381×127mm | Φ381×127mm | Φ381×127mm |
| Total Weight | 2066kg | 2208kg | 2506kg | 2900kg | 3570kg |
