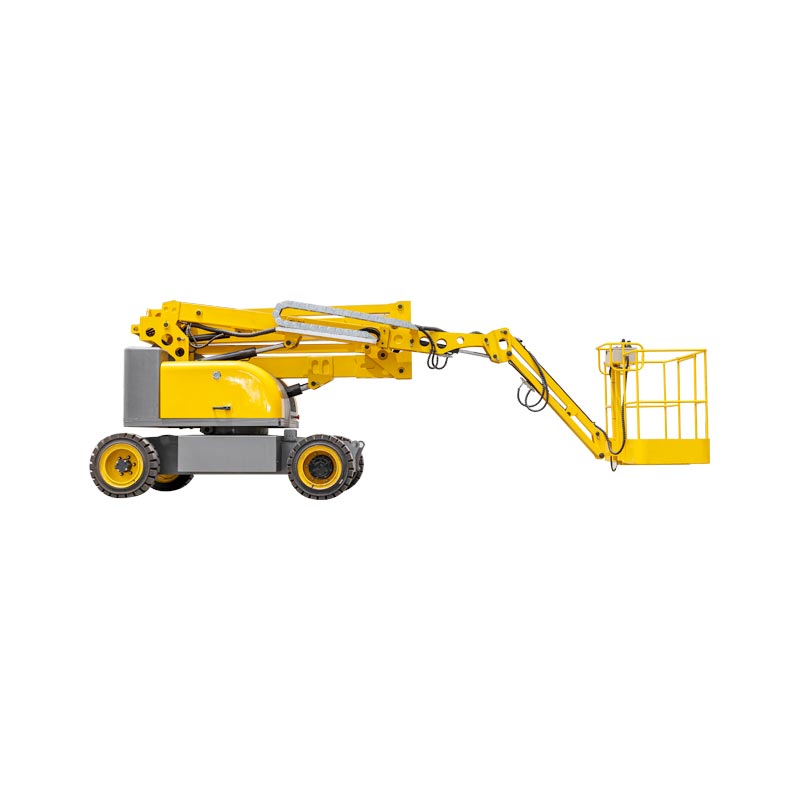

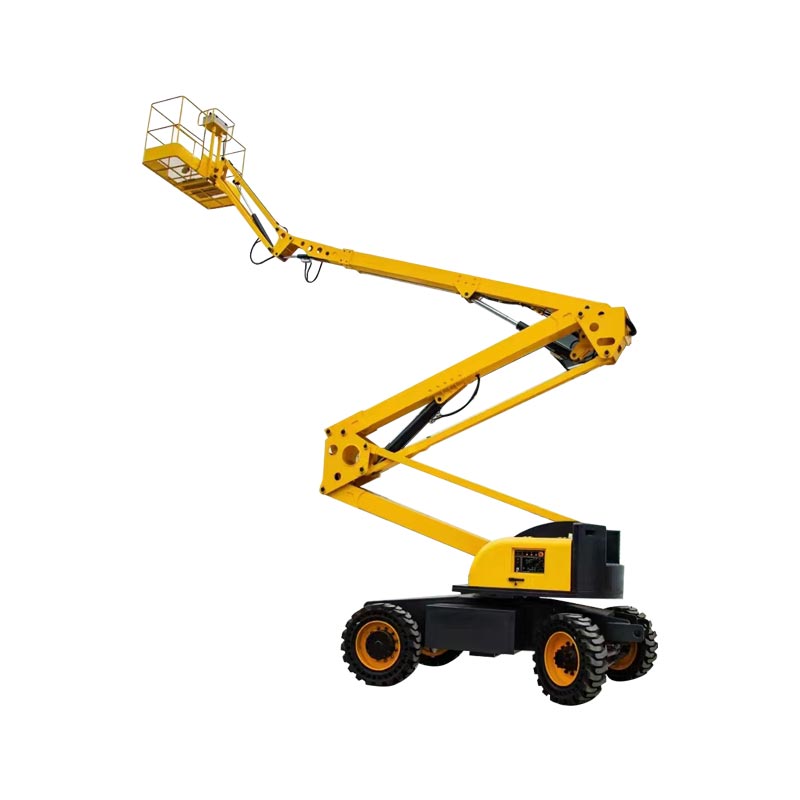

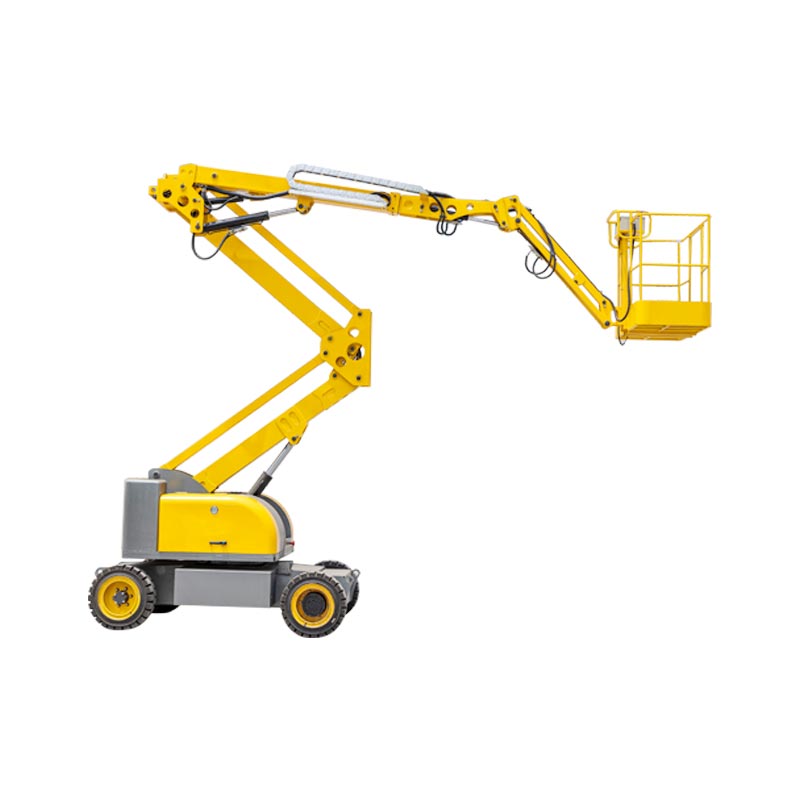

Product Details

ItemMY08MY10MY12MY14MY16MY18MY20
Maximum Working Height10.5m12m14m16m18m20m22m
Maximum Platform Height8.5m10m12m14m16m18m20m
Maximum Working Radius5.6m6m6.9m7.9m8.9m10.6m11.6m
Maximum Span Height4.6m5.6m6.4m7.45m8.2m8.5m9.4m
Maximum Load Capacity200kg200kg200kg200kg230kg230kg230kg
Diesel Engine ModelYunnei490Yunnei490Yunnei490Yunnei490Yunnei490Yunnei490Yunnei490
Diesel Engine Power4 cylinders 35kw4 cylinders 35kw4 cylinders 35kw4 cylinders 35kw4 cylinders 35kw4 cylinders 35kw4 cylinders 35kw
Drive TypeHydraulic motor driveHydraulic motor driveHydraulic motor driveHydraulic motor driveHydraulic motor driveHydraulic motor driveHydraulic motor drive
Working Desk Size1.53*0.78m1.53*0.78m1.53*0.78m1.53*0.78m1.88*0.78m1.88*0.78m1.88*0.78m
Maximum Overall Dimensions5.52*1.67*2.09m5.76*1.67*2.09m6.4*1.78*2.19m7.02*1.78*2.19m7.38*2.09*2.2m8.4*2.28*2.6m8.86*2.28*2.6m
The Height Of The Workbench From The Ground After Shrinkage520mm480mm300mm220mm150mm-100mm-150mm
Wheelbase1907mm1907mm2017mm2017mm2100mm2540mm2540mm
Wheelbase1440mm1440mm1550mm1550mm1800mm1900mm1900mm
Number Of Arms3 sections(third section is the telescopic arm)3 sections(third section is the telescopic arm)3 sections(third section is the telescopic arm)3 sections(third section is the telescopic arm)3 sections(third section is the telescopic arm)3 sections(third section is the telescopic arm)3 sections(third section is the telescopic arm)
Big Arm Deflection≤ 0.5%≤ 0.5%≤ 0.5%≤ 0.5%≤ 0.5%≤ 0.5%≤ 0.5%
Flying Arm Luffing Range-60° /+70°-60° /+70°-60° /+70°-60° /+70°-60° /+80°-60° /+80°-60° /+80°
Walking Speed (Car Closing State)4km/h4km/h4km/h4km/h4km/h4km/h4km/h
Maximum Allowable Angle Of Chassis1.5° /3°1.5° /3°1.5° /3°1.5° /3°1.5° /3°1.5° /3°1.5° /3°
Gradeability25%25%25%25%25%25%25%
Drive Steering FormRear wheel drive front wheel steeringRear wheel drive front wheel steeringRear wheel drive front wheel steeringRear wheel drive front wheel steeringRear wheel drive front wheel steeringRear wheel drive front wheel steeringRear wheel drive front wheel steering
Minimum Turning Radiusouter wheel 4.4m
inner wheel 2.25m		outer wheel 4.4m
inner wheel 2.25m		outer wheel 4.4m
inner wheel 2.25m		outer wheel 4.4m
inner wheel 2.25m		outer wheel 4.55m
inner wheel 1.85m		outer wheel 5.2m
inner wheel 2.2m		outer wheel 5.2m
inner wheel 2.2m
Turntable Rotation Angle360°continuous360°continuous360°continuous360°continuous360°continuous360°continuous360°continuous
Control Voltage24v24v24v24v24v24v24v
Tire28×9-15 Solid tires28×9-15 Solid tires28×9-15 Solid tires28×9-15 Solid tires28×9-15 Solid tires16/70-24 Solid tires16/70-24 Solid tires
Hydraulic Tank Volume160L160L160L160L160L160L160L
Weight5100kg5200kg5900kg6500kg7400kg10300kg11300kg
