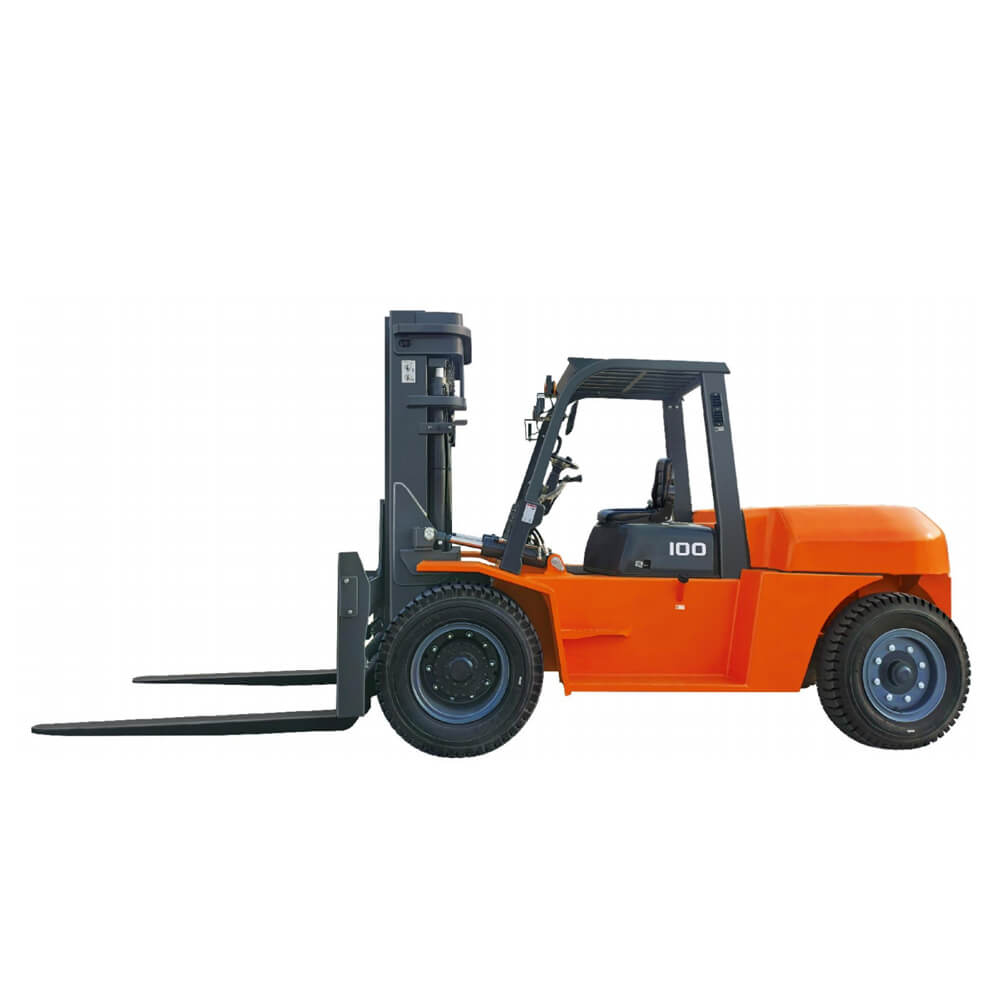

MY-100 Diesel Forklift

Model	Unit	MY-80	MY-100
Rated lifting load	kg	6000	7000
Load center distance	mm	600
Free lifting height	mm	200
overall length (With fork/Without fork )	mm	5175/3955	5497/4277
Width	mm	2245
Overhead guard height	mm	2570
Wheelbase	mm	2800
Minimum ground clearance	mm	250
Mast tilt angle(front/rear)	%	10°/12°
Tire no.(before)		9.00-20NHS
Tire no.(after)		9.00-20NHS
Minimum turning radius(outer side)	mm	3755	4150
Minimum right angle aisle width	mm	5755	6010
Fork size	mm	1520x170x70	1520x 175x85
maximum working speed(Full-load/No-load )	km/h	20/26
maximum lifting speed(Full-load/No-load )	mm/s	330/350
maximum gradeability(Full-load/No-load)	%	15/20
Forklift weight	kg	11800	12410
Engine model		Quanchai4J1-115C32
