MY-45 Skid Steer Loader-Skid Steer Loader-Mingyang (Shandong) Heavy Industry Machinery Co., Ltd

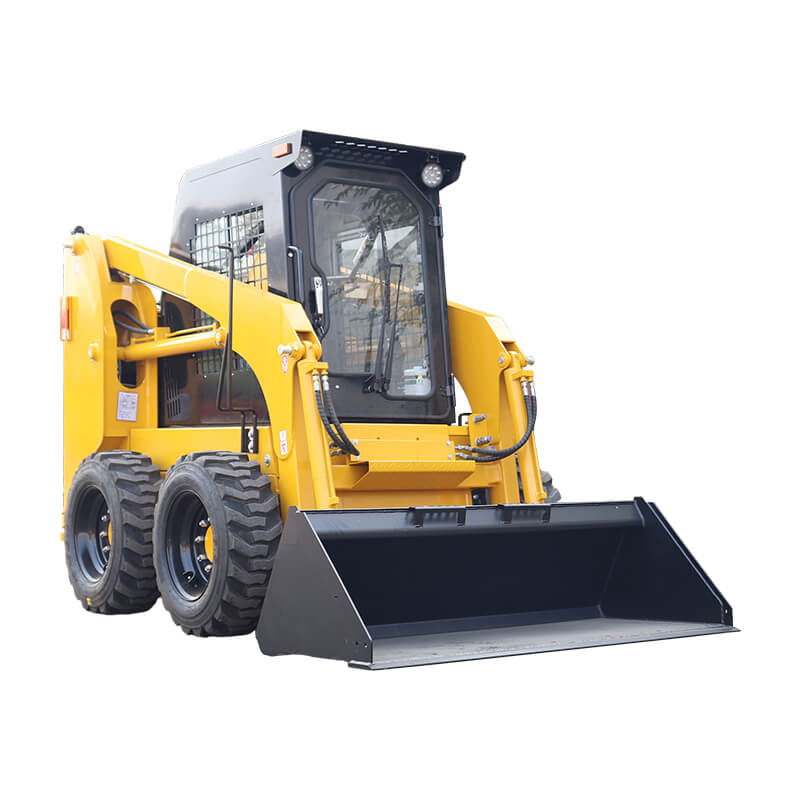

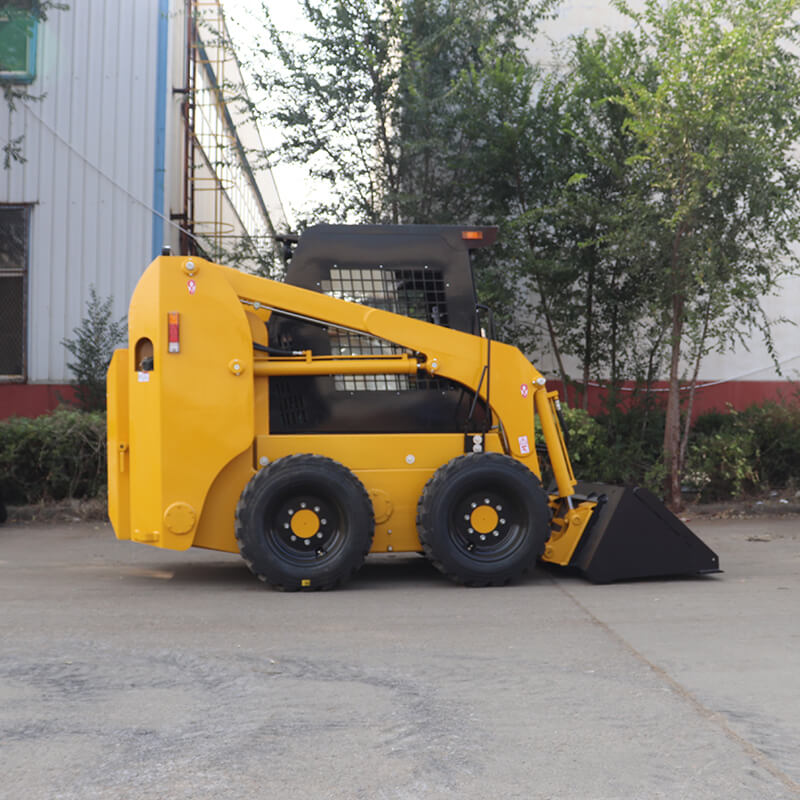

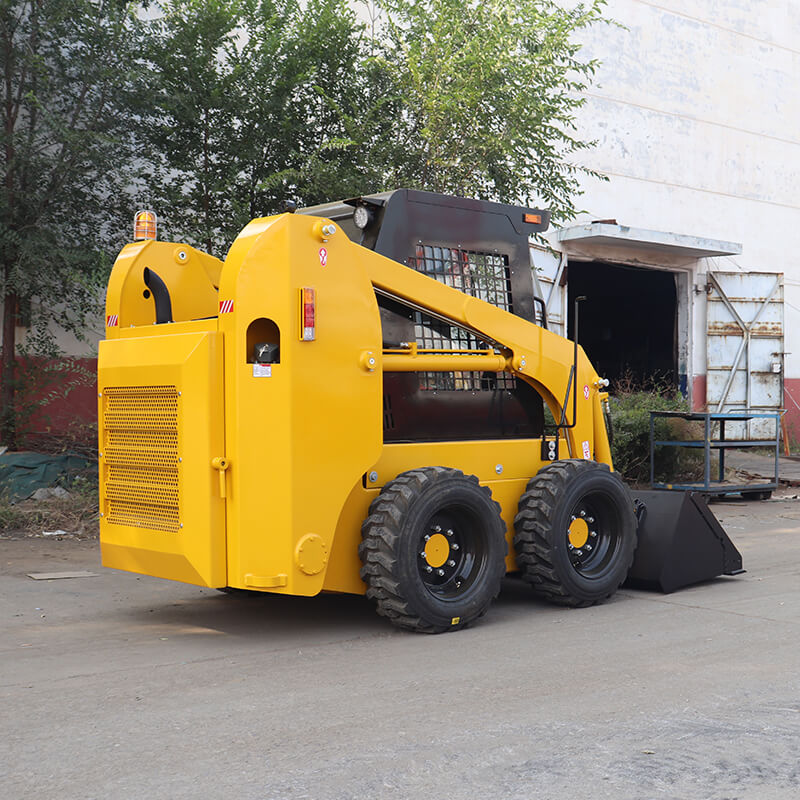

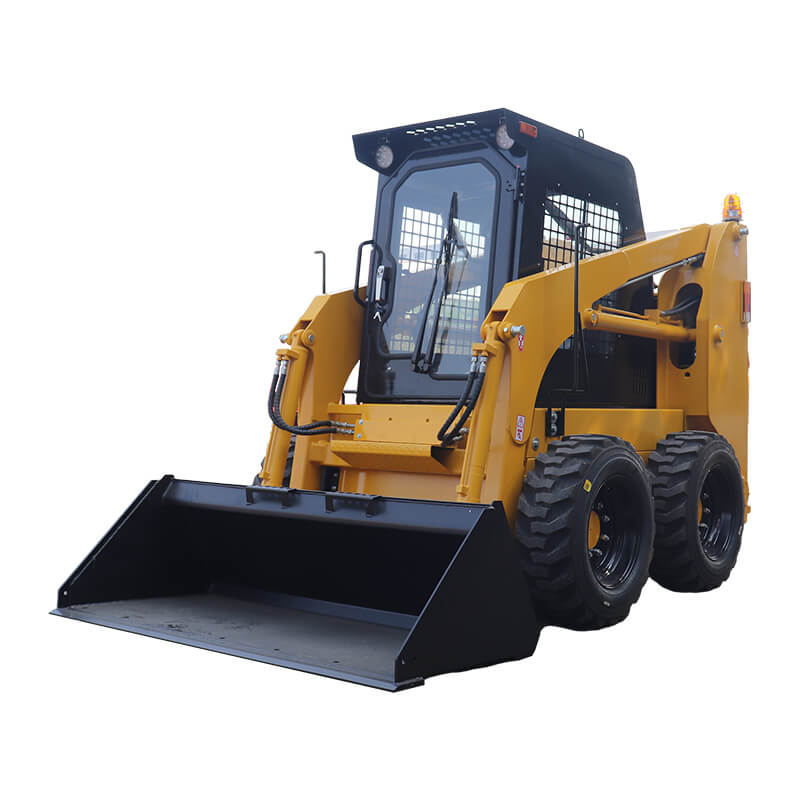

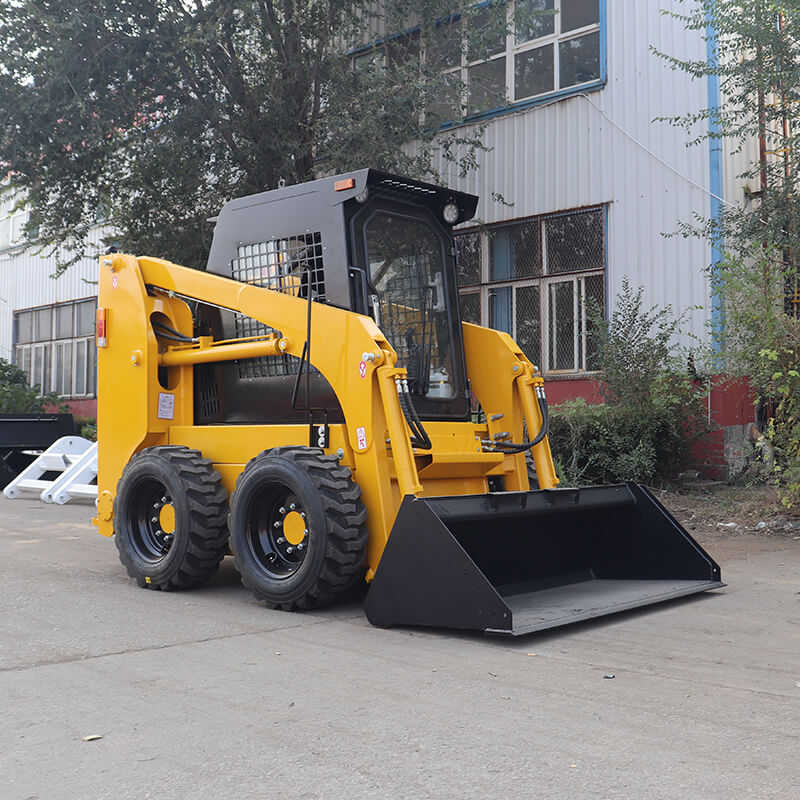

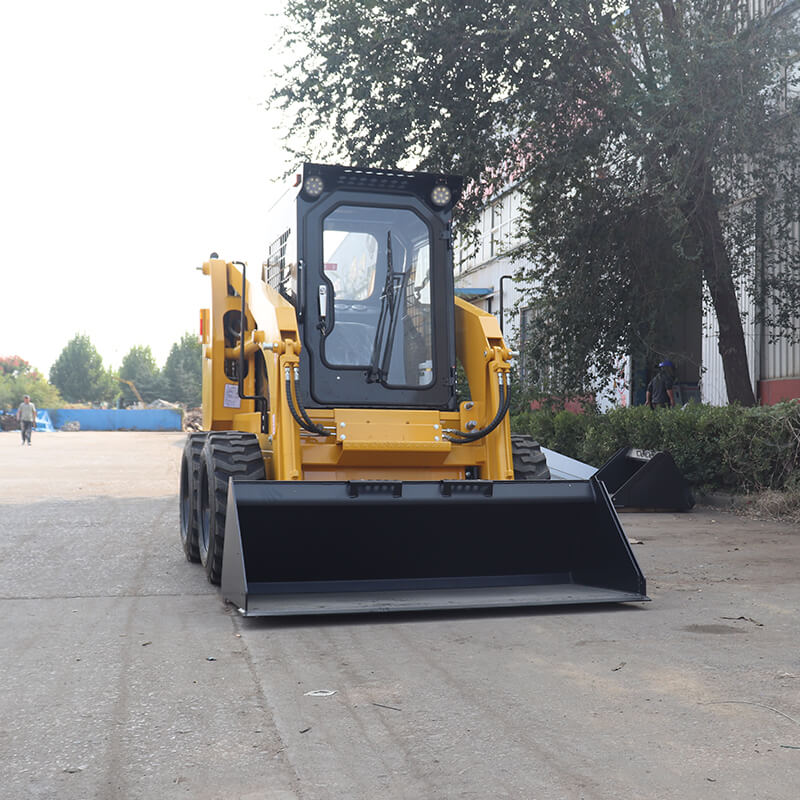

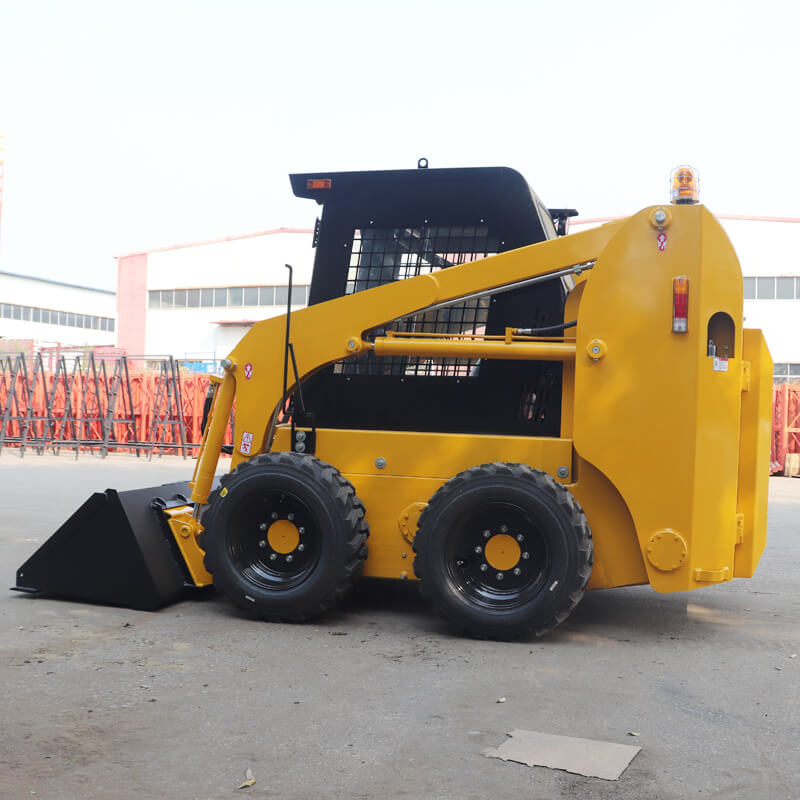

MY-45 Skid Steer Loader

Model	MY-25	MY-35	MY-45	MY-60	MY-100
Operating load(kg)	380	500	700	850	1100
Max Speed(km/h)	7.8	10	12	12	9\|18
Rated flux(L/min)	60	60	62.5	75	75
High Flow Flux (L/min)	/	/	/	/	140
Tire（track） model	570x16	8.5-15	10-16.5	12-16.5	12-16.5
Rated power (Kw)	18.2	37	37	45	74
Fuel tank capacity (L)	40	60	70	80	90
self weight bucket (kg)	1370	2300	2700	2800	3550
Bucket capacity (m³)	0.16	0.3	0.4	0.4	0.55
Overall operating height (mm)	3590	3300	3980	4000	4070
Height to bucket hinge pin (mm)	2670	2725	3080	3100	3280
Height to top of cab (mm)	1820	2000	2140	2160	2160
Height to bottom of level bucket(mm)	2380	2558	2913	2933	3140
Without bucket length(mm)	1945	2300	2640	2750	2880
Overall length with bucket(mm)	2580	2950	3420	3490	3580
Dumping angle at maximum height(° )	40	40	40	40	40
Dumping height(mm)	1820	2050	2380	2400	2500
Dumping reach(mm)	450	790	700	750	700
Rollback o bucket on ground(° )	30	30	30	30	30
Rollback of bucket at full height(° )	104	104	104	104	104
Wheelbase(mm)	801	897	991	991	1115
Ground clearance(mm)	125	140	185	205	205
Angle of departure(° )	22	20	20	20	20
Front turning radius without bucket(mm)	971	1098	1168	1198	1278
Front tuning radius(mm)	1730	1760	1958	1958	2144
Rear tuning radius(mm)	1010	1296	1630	1728	1857
Rear axle to bumper (mm)	610	964	1108	1208	1082
Tread width (mm)	760	1080	1450	1500	1500
Width (mm)	900	1350	1720	1880	1880
Bucket width (mm)	900	1400	1740	1880	1880
