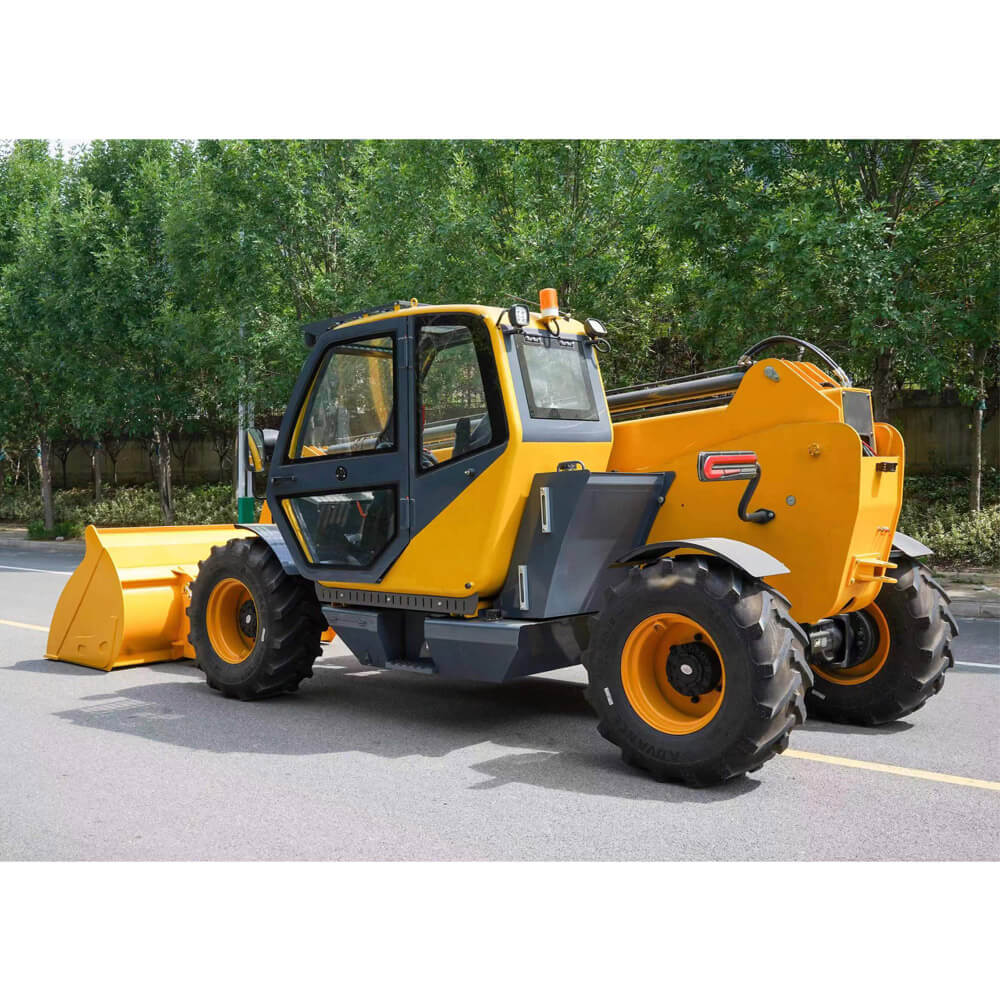

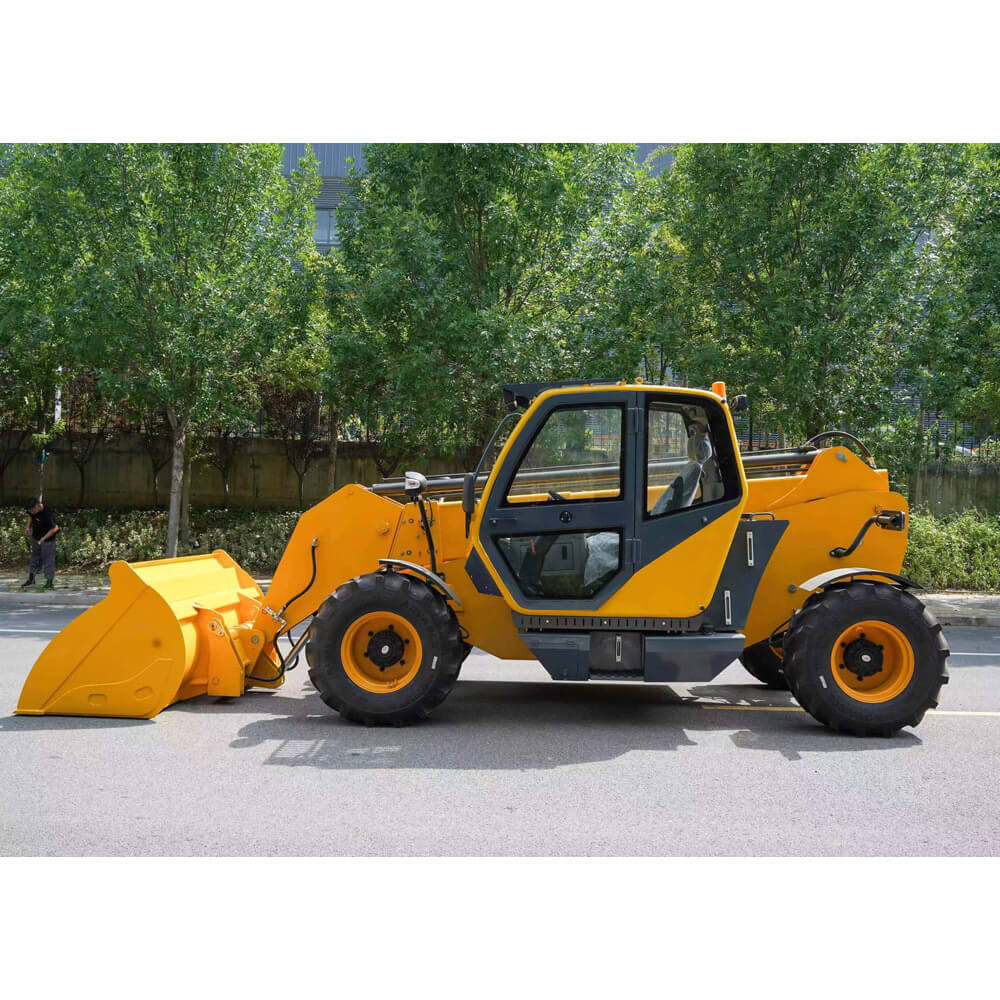

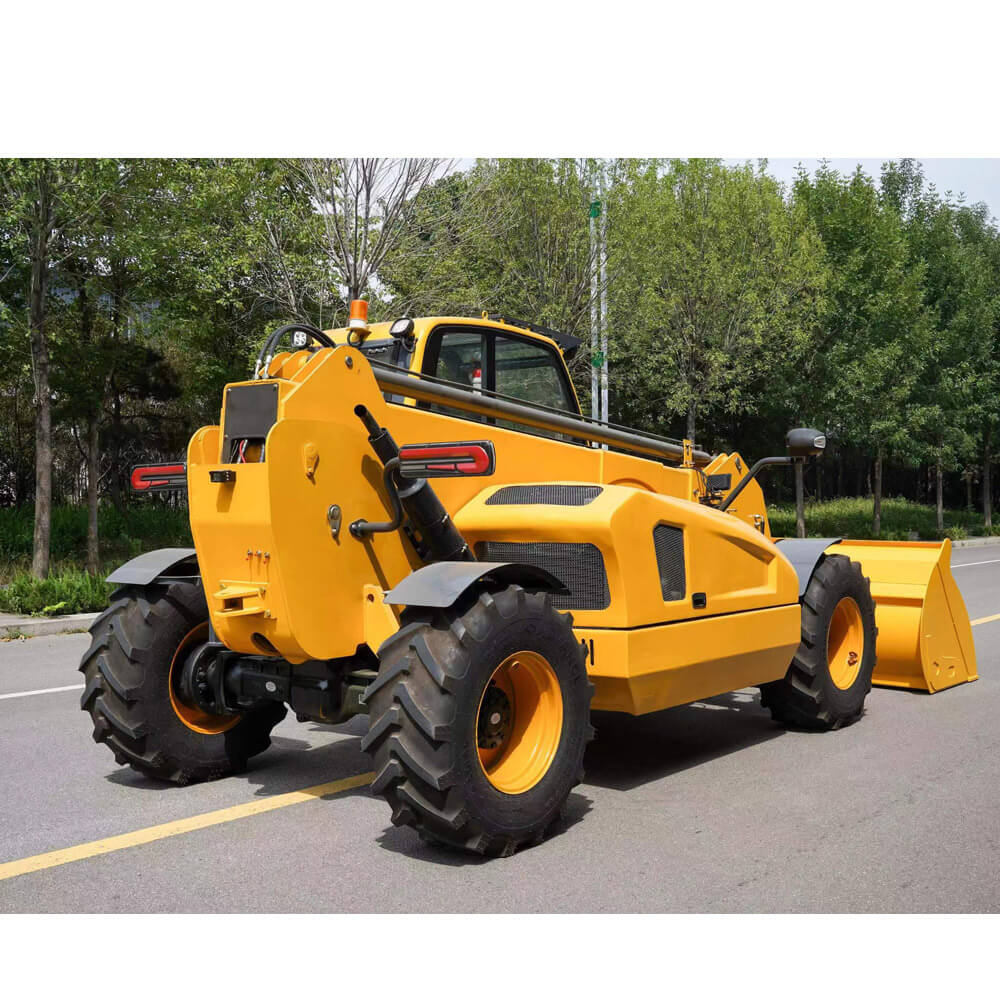

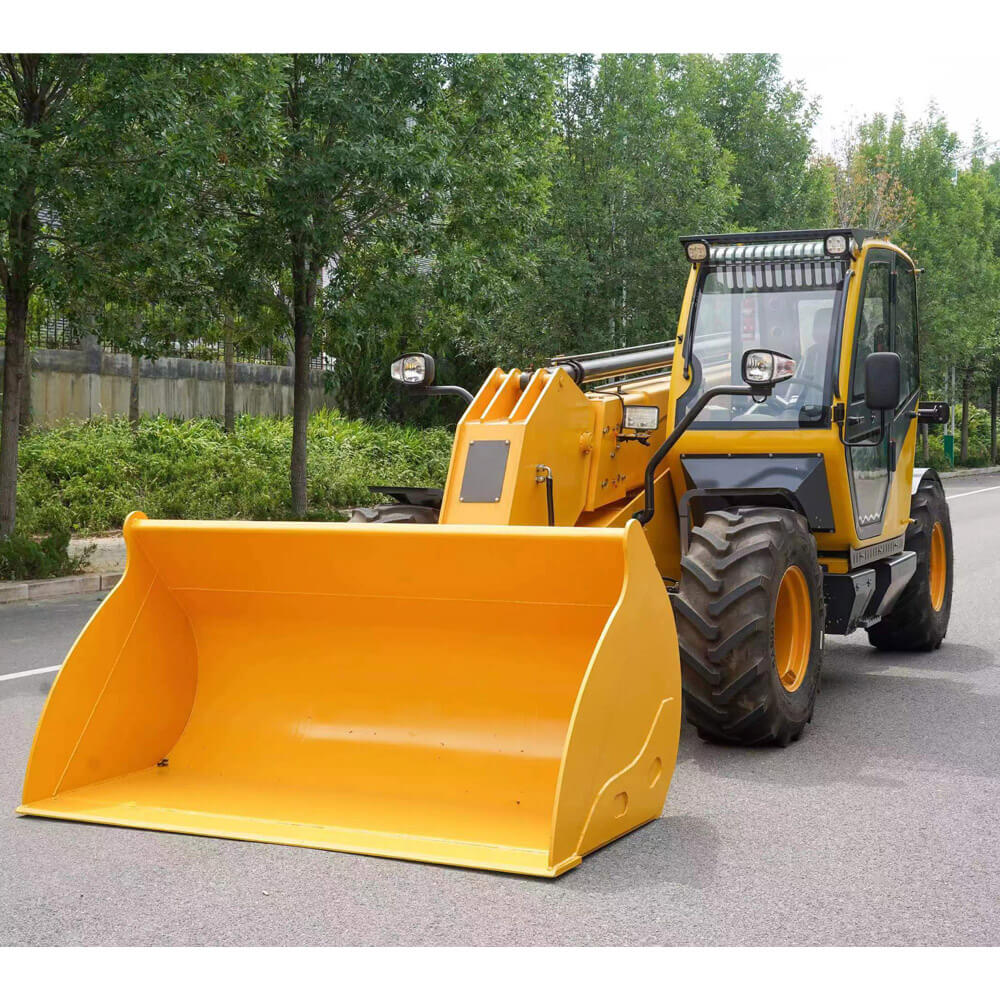

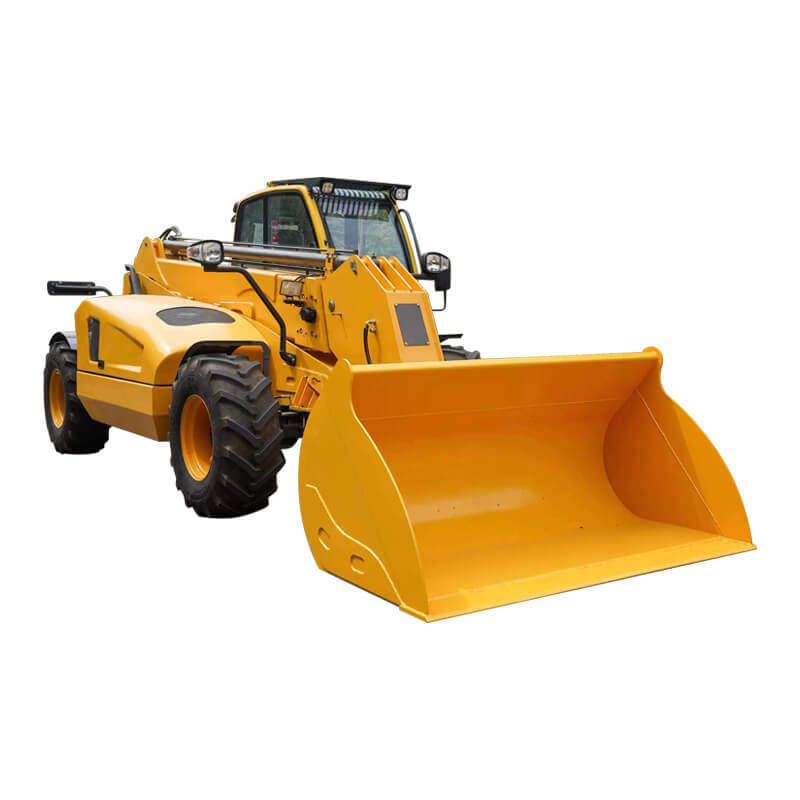

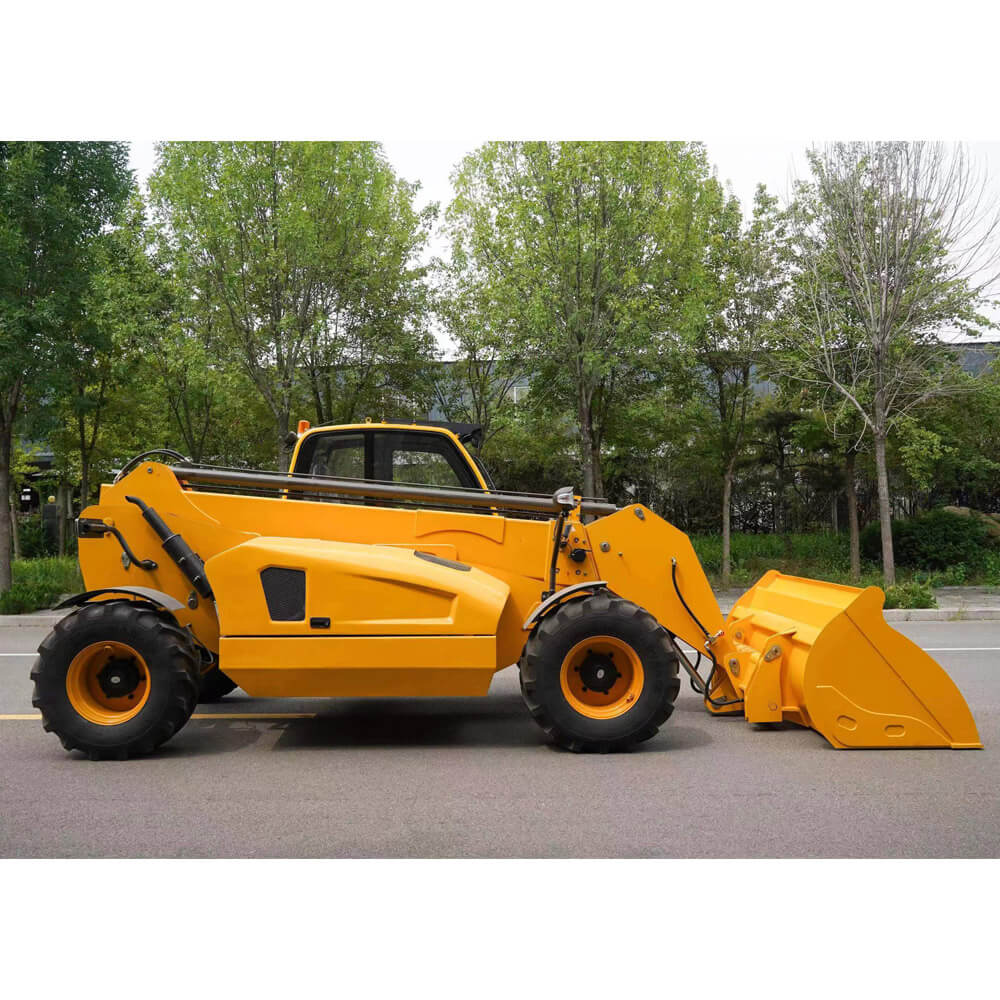

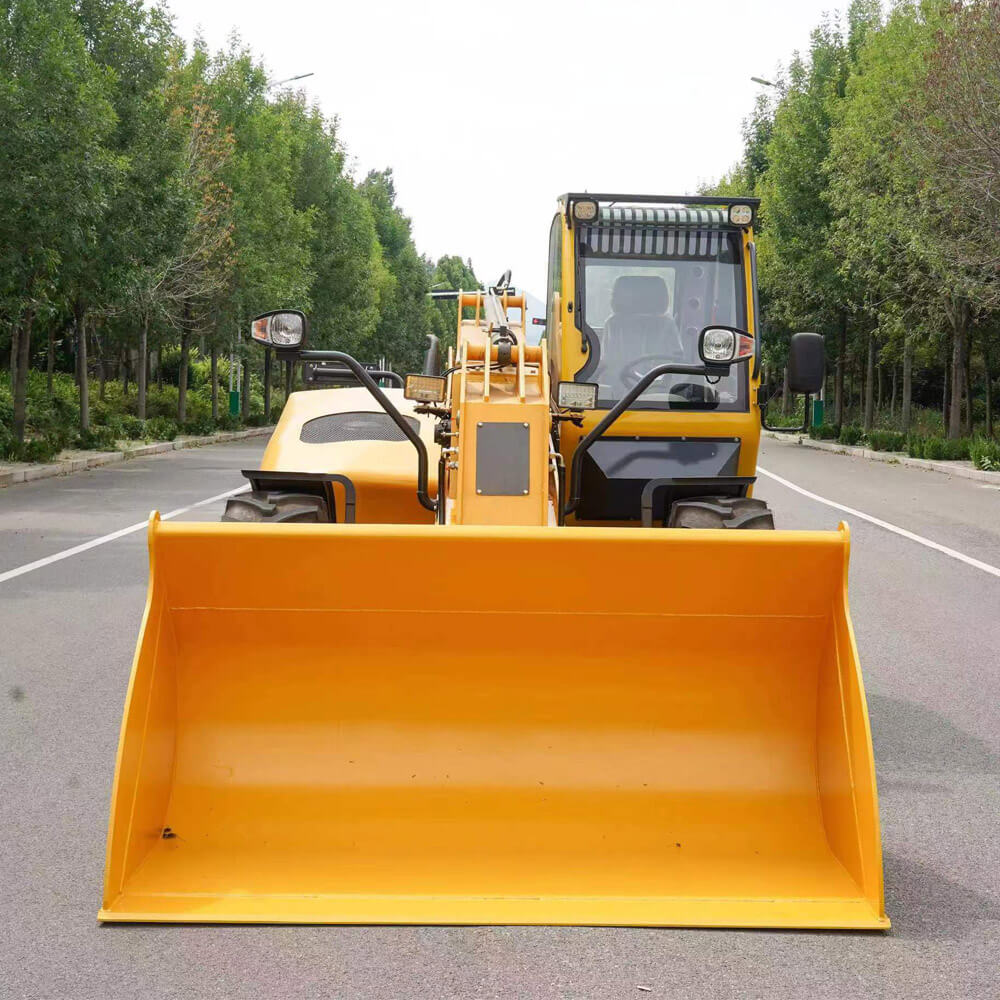

Telehandler
1.Powershift transmission incorporating Torque converter and two speed powershift gear box in one mounted unit.
2.A combined steering column mounted switch incorporating directional control and 2 forward and 2reverse powershift gears.
3.Front and rear drive alxes: Epicyclic hub reduction drive/steer axles with torque proportioning differentials permanent 4 wheel drive.
Service brake: Air pressure activated,Drum brakes.
Parking brake: Hand operated disc brake on output of gear box.
Product Details
Model | T30D-68 | Engine | YUNNEI/CUMMINS/YANMAR |
Overall height | 2300mm | Outside turn radius(over tyres) | 4250mm |
Overall width(over tyres) | 2150mm | Carriage roll back angle | 46.5 |
Inside width of cab | 800mm | Carriage dump angle | 37.5 |
Front track | 1750mm | Weight unladen | 6900kgs |
Wheelbase | 3150mm | Tires | 16/70-20 |
Overall length to front tyres | 4200mm | Fuel tank | 95L |
Overall length to front carriage | 4650mm | Hydraulic oil tank | 70L |
Ground clearance | 350mm | Drive speed | 23km |
