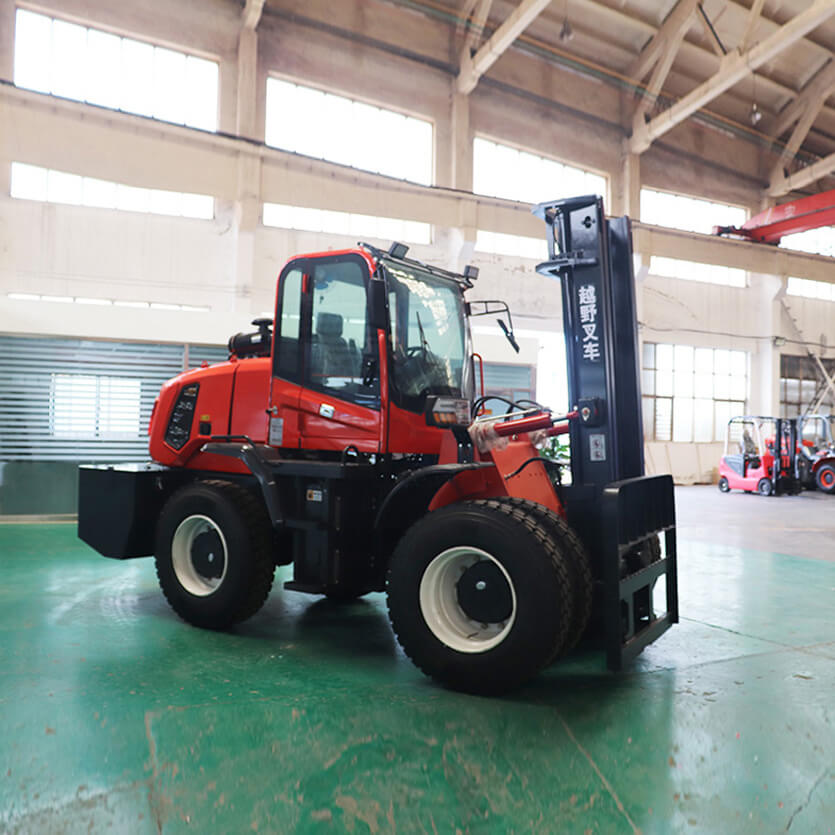

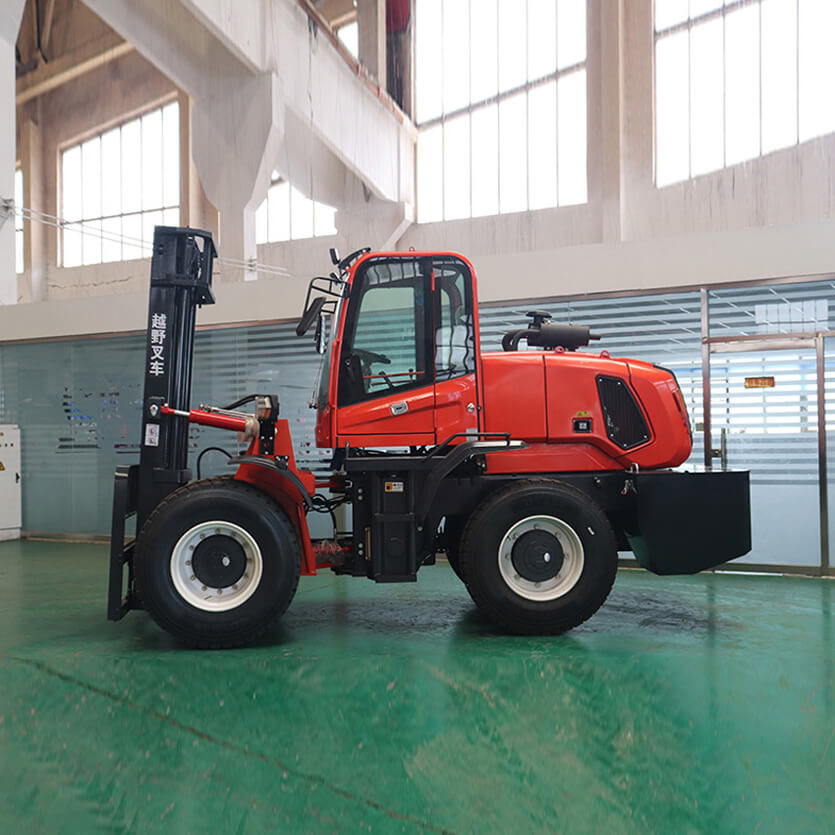

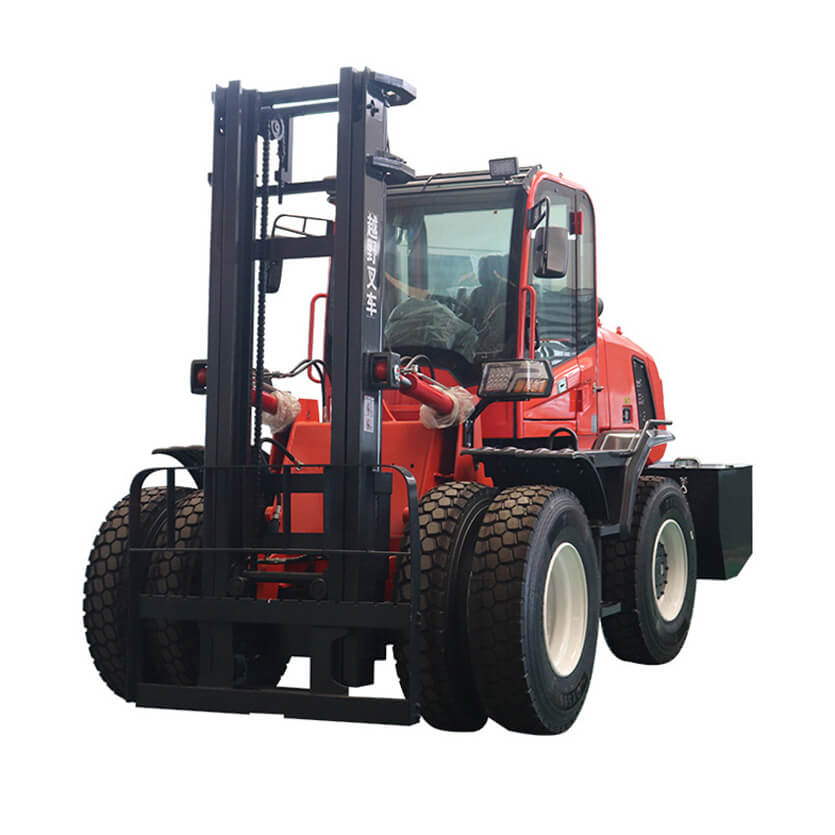

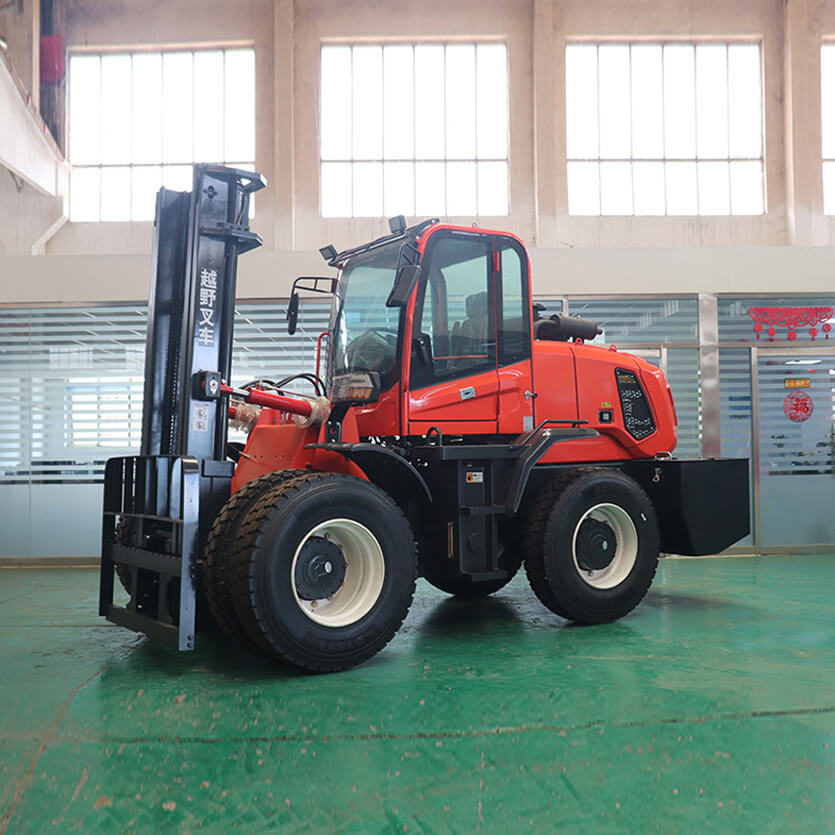

T60A
Model | T60A |
Engine | Xichai/Yuchai4105,90-103kw |
Drive mode | 4wd |
Gearbox | 280 high low speed torque converter |
Axle | Wheel reduce |
Tire | 12R22.5(4/2) |
Wheelbase | 2400mm |
Rated lifting weight | 6000kg |
Rated lifting height | 4000-6000mm |
Load center distance | 600mm |
Min. turning radius | 4500mm |
Max. climbing angle | ≤38° |
Min. ground clearance | 380mm |
Tilt of the mast,front/rear | 10°/8° |
Speed | 45km/h |
Max. hook traction | 35Kn |
Mast steel width | 180mm |
Fork length | 1520mm |
Machine weight | 6500kg |
Machine size | 4600*2200*2850mm |
Product Details
1.Electrophoretic spray paint, the paint surface is smooth and not easy to rust.
2.Mechanical control,easy to operate.
3.Hydraulic power steering wheel, easy to drive.
4.Cast steel axle,wheel reduction.
5.Thickened mast, strong bearing capacity.
6.Engineering rubber tires, suitable for various road surfaces.
7.LED light, high brightness, energy saving.
8.Both sides of the engine compartment can be opened for easy maintenance.
